S.W.C Thermal Cutoff SW-2 Series Specification

온도 정격

Cat NO. Tf Cutoff temperature Th Tm K.I.S UL C-UL TUV PSE CCC
SW-211T 102℃  98℃+2℃,-2℃ 70℃ 140℃ ● ● ● ● □ ●
SW-210T 115℃ 110℃+3℃,-2℃ 85℃ 130℃ ● ● ● ● □ ●
SW-215T 130℃ 125℃+2℃,-2℃ 95℃ 140℃ ● ● ● ● □ ●
SW-216T 133℃ 129℃+2℃,-2℃ 100℃ 140℃ ● ● ● ● □ ●
SW-217T 139℃ 135℃+3℃,-3℃ 105℃ 150℃ ● □ □ ● □ □
SW-220T 145℃ 141℃+3℃,-3℃ 115℃ 150℃ □ □ □ □ □ ●
SW-225T 150℃ 145℃+0℃,-5℃ 120℃ 155℃ ● □ □ ● □ ●

UL file NO : E126429 ● = Approved □ = Applied

전기 정격

  • - 정격전압 : 250V, ac
  • - 정격전류 : 2A
  • - 주파수 : 50 or 60Hz
  • - 최대허용차단전류 : 250V, ac 3A
  • - 순간과도전류 : dc current pulses, with an amplitude 30 A and a duration of 3 ms with 10 s intervals, are applied for 100 successive cycles through the current path.

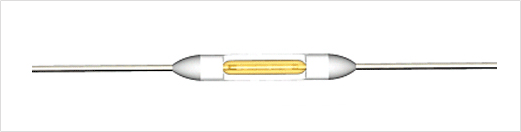

구조

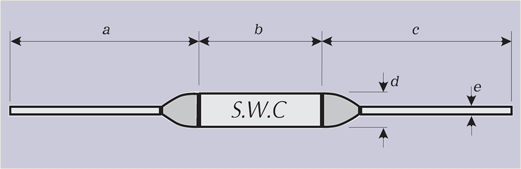

외형

dimension(mm) a b c d e
mm 67.0 ±3.5 9.5 ±0.5 67±3.5 2.5±0.2 0.6±0.05

인쇄

  • - 각 온도 퓨즈의 몸체에는 아래와 같이 인쇄 함
  • - 상표 : S.W.C.
  • - 제품번호 : SW - 2XXT
  • - 정격 : 전압(250V), 전류(2 A), 용단온도(℃)
